    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales

    Ask Lasest Price
    Brand Name : EJON
    Supply Ability : 2000 Set/Sets per Year
    Price : $9,000.00/sets 1-2 sets
    • Product Details
    • Company Profile

    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales

    Product Overview

    Ejon Y20L 3d channel sign machine outdoor stainless steel sign backlit led machine

    sign channel letter equipment

    бортогибочный станок для букв,ماكينة الانحناء للحروف,dobladora de letras de canal,dobladora de letras 3d

    Ejon Y20L Multifunctional Automatic Channel Letter Bending Machine is an updated model of Ejon Y13L, which increases the slotting trip from 13 cm to 20 cm, to meet the requirement of wide material processing. Y20L uses imported high strength plane cutter for slotting, can easily deal with various metal sheet plate, such as stainless steel, iron, aluminum plate, galvanized plate. It is very popular in Middle East, America and Russia, and widely used in advertising company for metal signs manufacturing, including seiko letters, resin letters, narrow edge letters, rimless letters, luminous letters, etc.

    Main characteristic of hardware

    1. Double ball screw matched with nylon gear transmission.
    2. Slotting mechanism with air blowing and cooling function.

    3. Feeding support controlled by air cylinder.

    4. High strength alloy planer controlled by high power servo.

    5. Ductile cast iron double blades bending structure.

    6. Steel coupling plus specially treated bender.

    7. Encoder of cast structure.

    8. External USB connection plus one button start function.

    9. Button board with voltage display function.

    Main characteristic of software

    1. Various processing methods can be switched at will for different materials and fonts. 2. The injection amount can be accurately calculated according to the injection process. 3. The software integrates material data of the plates to ensure the bending degree. 4. The software automatically optimizes nodes, without the need for customers to manually delete nodes. 5. One click to switch the use of different cutters for different materials.
    6. Plate data is automatically saved without multiple adjustments. 7. Continuous processing mode can be selected for batch processing, which is convenient and fast. 8. For angles smaller than R6, the thinning function can be selected to meet the requirements of various fonts. 9. Default sharp angle slotting function ensures the matching degree of slotting angle.
    FEATURES AT A GLANCE

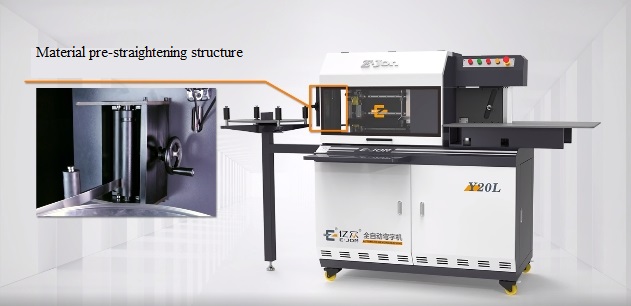

    The Material Pre-straightening Structure effectively corrects the deformation phenomenon that often occurs when the user uses the coil material, so that the material can be leveled, thus improving the overall processing quality.

    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    FEEDING
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    SLOTTING
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    BENDING
    PRODUCT SPECIFICATIONS
    No
    Item
    Data
    1
    Power
    2.0 kW
    2
    Material thickness
    0.4~1.2 mm
    3
    Slotting trip
    10~200 mm
    4
    Applicable material
    metal sheet: stainless steel, galvanized plate, aluminum plate, iron
    5
    Control system
    4 axis control system (2 axis servo control)
    6
    Slotting method
    Plane cutter
    7
    Working space
    2400 mm * 1100 mm * 1500 mm
    8
    File format
    Dxf.Plt.Ai
    9
    Machine weight
    400 kg
    PRODUCT CONFIGURATION
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    Cast clamps can avoid scratching the material, meanwhile improving the feeding holding.
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    The encoder monitors the numerical change of the feeding length in real time, compensates the unqualified data, and ensures the feeding accuracy.
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    Punching needles are made of imported steel. The punching holes are smooth and burr-free.
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    The high-power servo motor ensures the stability and consistency of the slotting, as well as the positioning accuracy and stability of the high-speed bending.
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    One button starting function makes the activation more convenient, easier and faster.
    Sample Letters Show
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    Seiko letter
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    Resin letters
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    Narrow edge letters
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    Rimless letter
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    Luminous letters
    Ejon Y20L Store 3D Neon Sign Making Machine Maquina para Hacer Letras y Bordes Laterales
    Luminous letters
