Tianjin Ejon Flying Science And Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Ejon |
| Supply Ability : | 5000 Set/Sets per Year |
| Price : | $9,000.00/sets 1-9 sets |
S13: 4 sets servo motors control system, SMC pneumatic component.
1. Aluminum profile frame and chrome-faced.
2. The specially designed extra long alternate feeding mechanism.

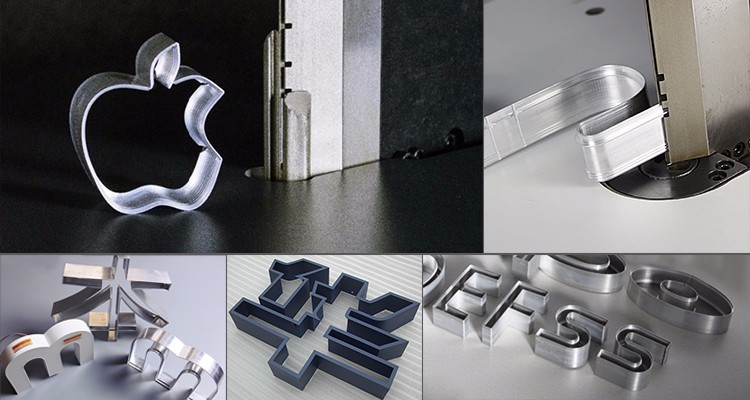

3. Double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision. It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.
SPECIFICATIONS | ||||||
Feeding system | Double ball-screw alternate feeding device | |||||
Slotting System | Plane cutter and alloy milling cutter system | |||||
Bending System | Double blade alternate bending system | |||||
Suitable Material | Stainless steel, Galvanized steel, Aluminum plate, Aluminium
profile | |||||
Material Height | Stainless steel,Galvanized steel,Aluminum plate:20~130mm/ Aluminum profile:20-100mm | |||||
Material Thickness | 0.4-1.2mm for SS, 1.5mm for flat aluminum | |||||
Control System | 4 axis servo control system | |||||
Min. Bending Angle | R6 | |||||
File Format | Dxf.Plt.Ai | |||||
Power | AC220V,50Hz,3.0Kw | |||||
Air Supply | 0.6m3/Min | |||||
Total Weight | 500Kg | |||||
1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.
2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.
3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.
4) 4 sets of Panasonic servo control system,SMC pneumatic component,chrome-faced,computer and air pump.
The mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and improve feeding precision.
The double ball screw of feeding design ensure the feeding speed
and precision as well as stability
Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel; using milling cutter for Aluminum plate and Aluminum profiles.
The encoder module is the key component of the the relation
equipment precision , and the precision casting is used to ensure
the performance of the high precision encoder.
To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.
The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.
The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 1410(L) * 750 (W) * 1560(D) | |
Weight | 460KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
Packaging | ||
Size | 660(L) * 660(W) * 1110 (D) | |
Weight | 45KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
|
|
