Place of Origin :Tianjin,china Brand Name:EJON

Conditon :New Model Type: W40 Suitable Material : Stainless steel,Galvanized plate,Aluminum plate Automaic :Automatic

After-Sales Service:Video/Oline support,Engineers Service Power :CNC

Slotting Method :Alloy Plane Cutter Slotting slotting Trip:20-400mm

Bending Method:Double Blade Alternate Bending System

Control System:4 servo axis control Certification:CE

Supply Ability

Supply Ability:8800 Sets/Year

Packing &Delivery

Packaging Details:The Export Non-Fumigation Wooden Box

Port :Tianjin Port Or other China Port

Delivery Time : 10-20 Working Days

Product Description

EJ0N W40 machine are wide edge heavy automatic bending machine,it is widely used in Landscape character,Square letter,High side character,Hypotenuse letter and other letters.

Adopting the progressive clamping feeding design,the feeding torgue is large and the precision is high,which effectively avoids the waste of materials and fundamentally saves the cost.Through the perfect combination of feeding clamp,high-quality ball screw and linear guide,high-power servo dive,it can meet the high load working condition,and cooperate with the material pre-straightening system,eliminating the feeding slipping and deformation of the sheet during the feeding process.

W40 adopts CNC turning tool as slotting tool,which has high strength and low loss.Each knife has 8 angles,no need to sharpen,greatly improve the working life.The processing is low noise and no dust,ensuring smooth slotting effect.

W40 bending adopts 1500W SERVO motor,high torque,high forming degree.The precision mechanical bending system performs good when processing thick plates and high-side materials. The software is easy to operate ,and the processing graphics do not need to modify the nodes,which greatly improves the work efficiency.It is the preferred bending machine for high-side words.

W40 Machine part details

High -power Fuji servo driver:

High-power full Fuji servo driver,maximum height to 40cm,double blade alternating bending system,are specialized for square letter ,landscape letter and other kinds of giant letter processing.

Feeding parts :Mechanical arms and alternating clamp

feeding designed ,servo dive +high quality ball screw and

linear guide rail configuration make feeding smooth and

steady.No deformation of the material.Length encoder

and closed-loop control system matches the finished

product with the source file perfectly.

Slotting Parts: Plane cutter slotting system provided with automatic oil spray mist fuction of grooving to ensure the smoothness and of the fluting effect.The system presets the groove function of natural angle, it makes thin automatically for small angle and sharp angle,which can easily deal with complete

processing.

Bending Parts: Double blade alternating bending system, adopts 1500W servo motor,high torque,high forming degree,

and high-strength ball screw to meet the high load working

condition.

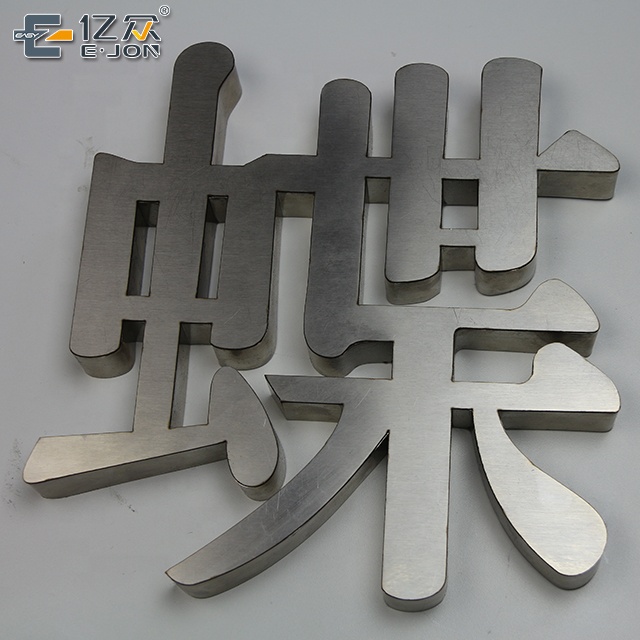

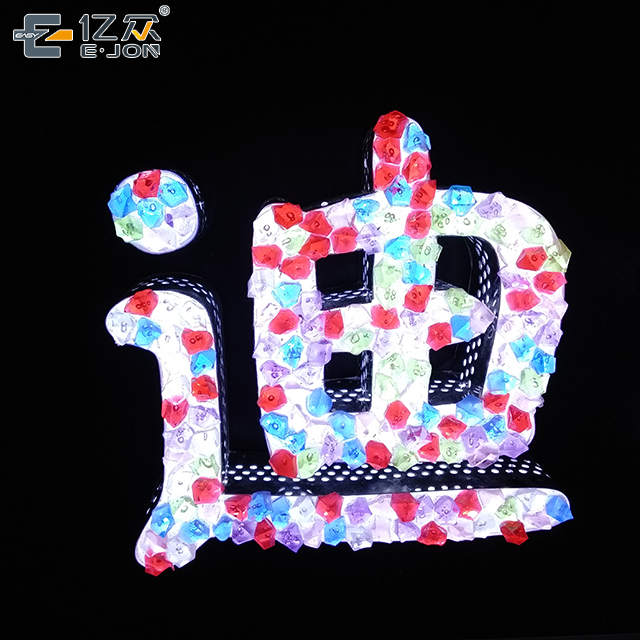

Sample Showing

How to learn machine operate

1. Operation Manual U disk

Provide U disk with machine which have detail specific english operational manual and videos.

2. Network Service

Through Wechat,Whatsapp,Skype,E-mail,Team viewer provide online service.

3. Factory Visiting

Welcome customer to visit our factory to learn how to operate the machine.

Supporting Facility

Computer Pump File Format

To use the device,you need to The use of equipment should The software of bending

install the control card in your be equipped with machine is self-developed. computer and then connect to AIR compressor,we suggest Import the format supports

the bending machine and install that the selection of more Dxf.Plt.Ai.We recommend

the software computer. than 4kw,the gas flow is using Coredraw or adobe

Configuration:XP system or 0.6m3/Min illustrator to complete

window7 32-bit system,and the file after the export file

requiresa pcl card slot to to Dxf.Plt.Ai format.Then

install the control card. open the operating software,

select the document
