YZ400 Industrial Metal Polishing Automatic Sanding Drawing Machine with 23.87kW Power

Ask Lasest Price
Brand Name :	Ejon
Supply Ability :	2000 Set/Sets per Year
Price :	$7,500.00/sets 1-2 sets

Add to Cart

Product Details
Company Profile

YZ400 Industrial Metal Polishing Automatic Sanding Drawing Machine with 23.87kW Power

Product Overview

Ejon Automatic Sheet Metal Polishing Deburring Machine Sanding Machine for Laser Oxide Removal and Workpiece Drawing

Ejon YZ400 Sanding Machine supports laser cutting machine, CNC stamping, various CNC processing or other machining deburring front production line.The equipment processed in a straight line, through high-speed rotation of wide sand belt, solid slag burrs and oxide skin can be easily removed, surface drawing effect and slightly chamfering can be achieved.

YZ400 Industrial Metal Polishing Automatic Sanding Drawing Machine with 23.87kW Power

Equipment usage:

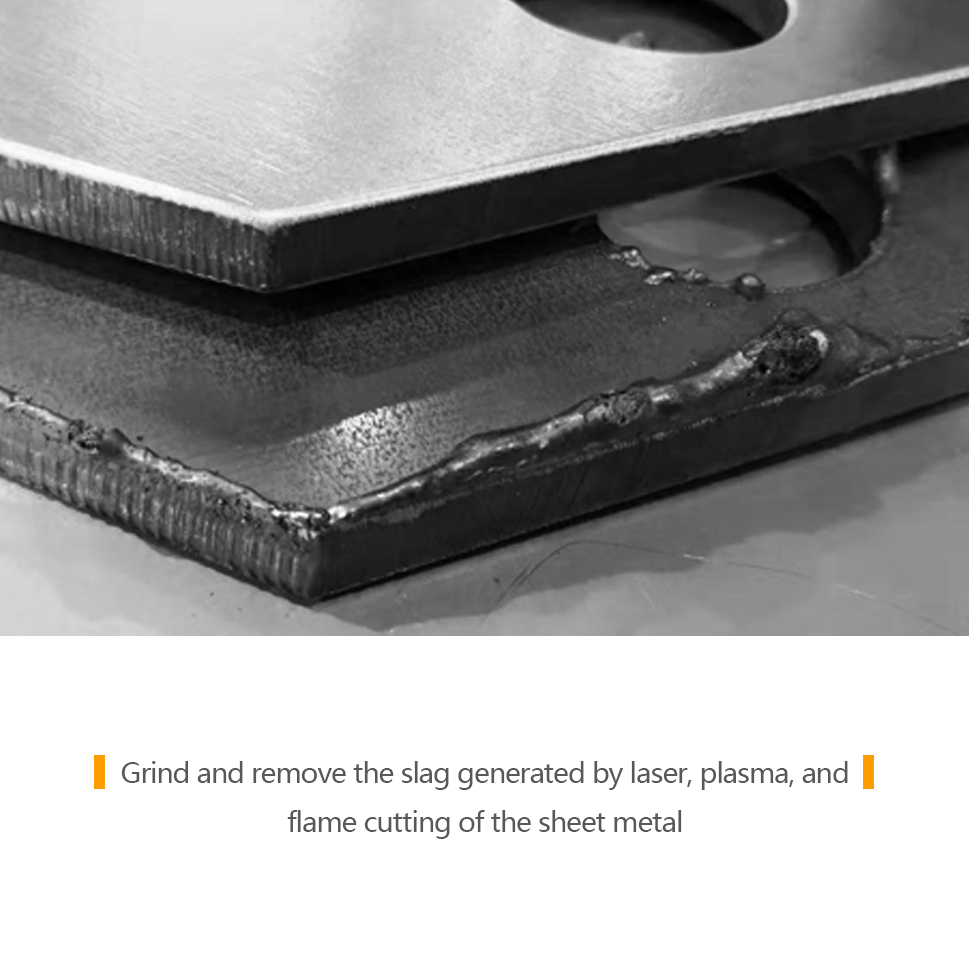

* Polish the slag produced by laser, plasma and flame cutting;

* Grinding and polishing the oxide scale and rust scale on the surface of the workpiece;

* Carry out wire drawing on the surface of the workpiece.

Scope of application:

* Laser cutting parts

* Stamping parts

* Machined parts

* Plasma cutting parts

1. The conveying speed can be adjusted by frequency conversion；

2. The conveying table is equipped with automatic lifting function.

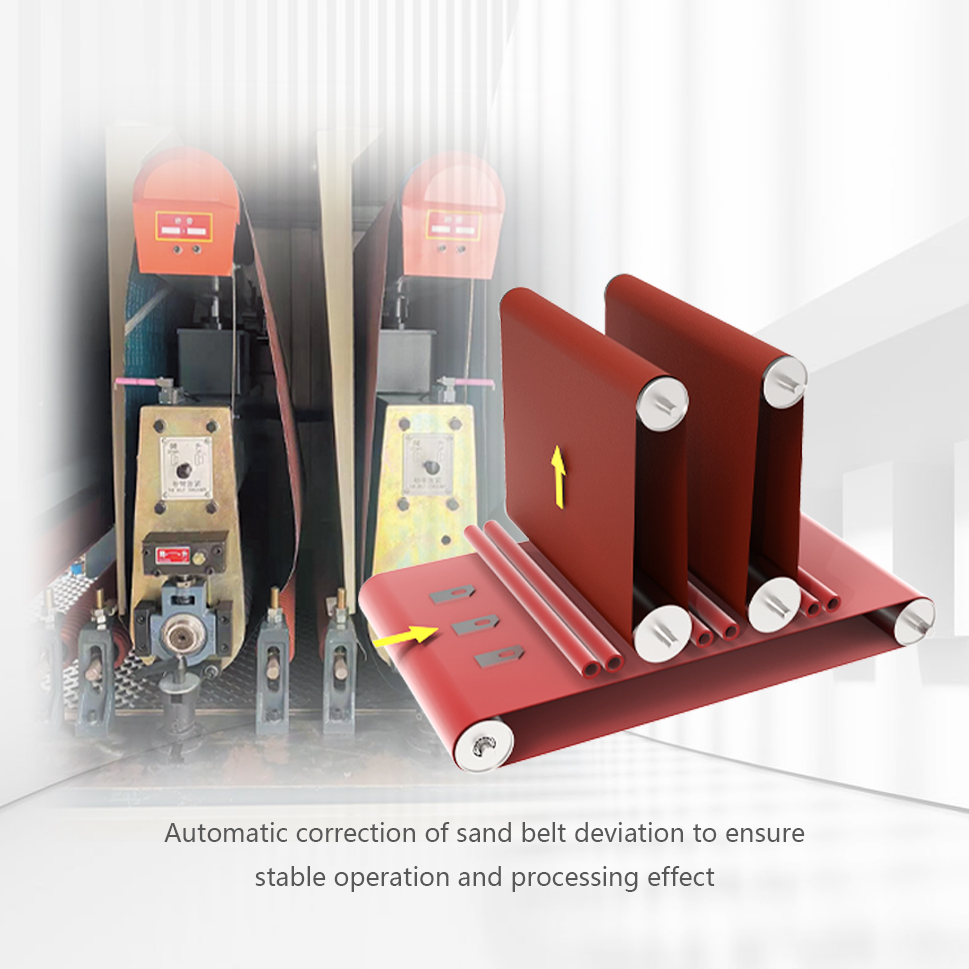

1. Automatic deviation correction of abrasive belt ensures stable operation and machining effect.

2. High friction roller + Magnetic adsorption = Double guarantee of feeding

PRODUCT SPECIFICATIONS

	Items	Parameters
1	Max processing width	Max: 400 mm
2	Processing thickness	0.5~110 mm
3	Customizable min. processing size for magnetically adsorbed parts	50 mm * 50 mm
4	Spindle speed	5~25 m/min(Variable frequency adjustable）
5	Machine weight	1000 kg
6	Abrasive belt size	420 mm * 1750 mm
7	Totally power	23.87 kW
8	Noise	≤100 dB
9	Dimensions	2100 mm * 900 mm * 2000 mm
10	Sanding tolerance	0.05 mm

EFFECT DISPLAY

Exhibition

About Us

Tianjin Ejon Flying Science And Technology Co., Ltd.

The company specializes in the production of automation machinery and equipment, with independent intellectual property rights and high-level R & D team. The self-developed control software has high positioning accuracy, high precision and easy operation. Ejon series automatic CNC equipment is simple and exquisite in structure, safe and stable in performance, convenient and
easy to learn in operation, which realizes the automatic production of industrial manufacturing and greatly improves the
production efficiency and quality.

CLICK HERE TO VISIT OUR STORE

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

Pre-Sales Service

* Engineers available to service machinery overseas.
* Machine operation video and manual.
* Online support and video call support.

FAQ

Q: How to choose a suitable machine?

A: Just tell us the type, shape, size, thickness, etc., of the material to be processed and our sales specialist will recommend the most suitable machine to you.

Q: Do you support customization?

A: Yes. According to your exact requirements, we will judge the feasibility of customization and make a proper and cost effective solution for you if it is workable. We accept the sample testing anytime.

Q: How about the customer support?

A: We have detail video and Manual, also provide remote video call support, and can send enginners to give you onsite guidance if you needed.

Q: What else machines and materials do you have?

A: We have automatic deburring machine, channel letter bending machine, fiber laser welding machine, laser cutting machine, letter grinding machine, automatic slotting machine, etc, as well as diverse metal strips (aluminum coils) to sell.

You can get a factory price from us, especially for a large order or long term cooperation.

Q: What is the MOQ?

A: 1 set.
