    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control

    Product Description
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control

    Ejon ET80 Wide Edge Heavy Automatic Bending Machine

    Dobradora de letras gigantes en 3d

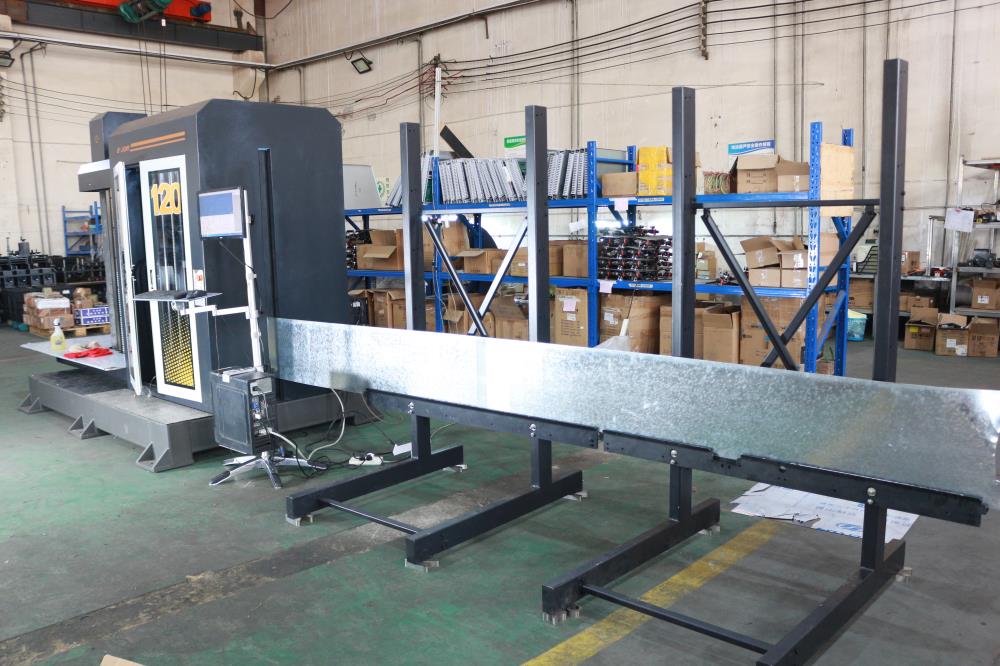

    ET80 is a heavy Channel Letter Bending Machine launched for the need of large neon sign making.
    It adopts CNC lathe tool as slotting tool, with high strength and low loss. The knife grain has 4 edges on both sides and no need to sharpening. Equipped with oil mist lubrication cooling function, prolong the life of knife grains. Adopting progressive clamping feeding design with large feeding torque and high precision, thus effectively avoided material waste and fundamentally saved the cost. The perfect combination of material jig, high quality ball screw, linear guide rail and high power servo drive make it easy to work at high load working state. Cooperating with the material pre-straightening system, the feeding slip phenomenon as well as the deformation of metal sheet is eliminated and avoided in the traditional rolling feeding process. Precise mechanical blade systems perform better against thick plates and big wide materials. Software operation is simple, processing graphics without modification of Node, greatly improve the work efficiency.

    Product Application

    1. ET80 is widely used in the advertising industry for the production of outdoor giant 3D sign channel letters, such as:
    Square letter
    High side character
    Hypotenuse letter
    Landscape character

    2. The material can be processed are as follows:
    Stainless steel
    Galvanized steel
    Aluminum plate
    Material Thickness: 0.4~1.5mm;
    Slotting Trip: 400-850mm

    3. We also have other big models and accept customization according to the customers' request
    Click here to chat with us now!

    SPECIFICATIONS
    Feeding system
    Double ball-screw progressive feeding system
    Slotting System
    alloy plane cutter slotting system
    Bending System
    Double blade alternate bending system
    Suitable Material
    Stainless steel, Galvanized plate, Aluminum plate, Iron plate
    Slotting Trip
    400-850mm
    Material Thickness
    0.4-1.5mm
    Accuracy
    ±0.1mm
    Working Space
    6350mm*1860mm*2350mm
    Min. Bending Angle
    R15
    File Format
    Dxf.Plt
    Power
    AC220V,50Hz,4.0Kw
    Total Weight
    3000kg
    Control System
    4 axis control system(4 axis servo control)
    Main Features
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    How to solve the problem of material slipping?
    As we know, the heavy material slipping is the main problem in the traditional rolling feeding. Ejon made a perfect combination of material jig, high quality ball screw and linear guide rail to tightly hold the material, meanwhile developed the material pre-straightening system to avoid the deformation of plate. Therefore, the material waste is effectively avoided, and the cost is fundamentally saved.
    How to guarantee the feeding accuracy?
    The encoder closed loop control system automatically compensates the feeding length to ensure the feeding accuracy within ±0.1 mm.
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control

    How to guarantee the smooth and steady feeding?

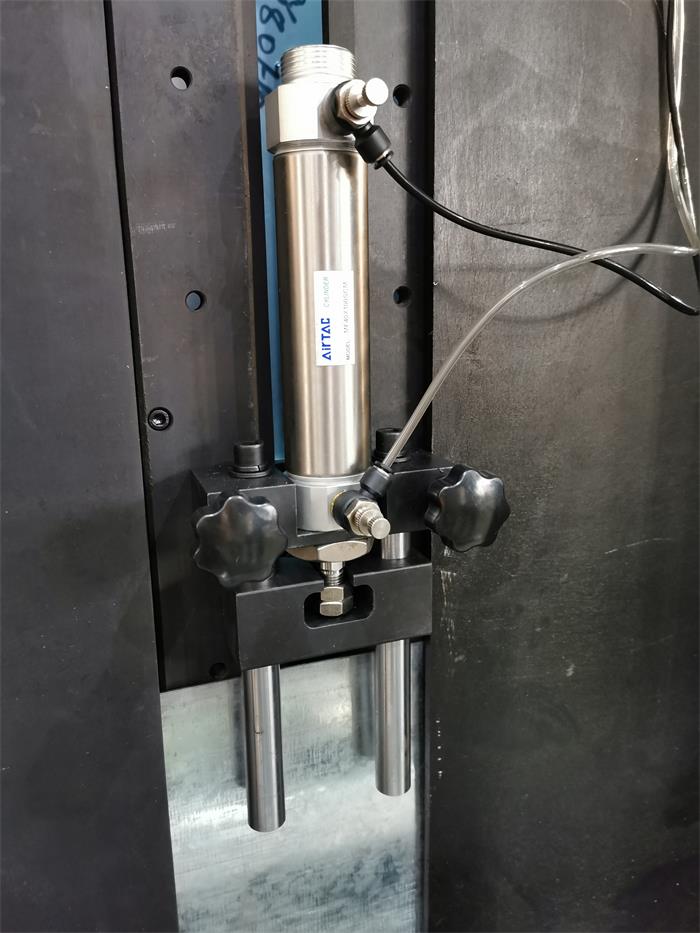

    In case of irregular material height, the pneumatic support automatically adjusts the height to ensure smooth feeding.
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control

    Does it convenient to operate such a large machine?

    Ejon equipped a computer support with the machine, more ergonomic and convenient to operate and place as you like.
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control

    How to guarantee the bending effect?

    High power 4 axis servo control system has the characteristics of large torque and high precision, and can easily and efficiently feed and bend thick and high-edge materials, with low noise and no dust in the machining process.
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control

    Does the blade need to be changed frequently?

    Ejon ET80 adopts CNC lathe tool as slotting blade with high strength and low loss. The blade has 4 edges on both sides and no need to sharpening. Oil mist lubrication cooling function prolongs the life of the blade.
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Sample Letters Show
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Exhibition show
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control

    Computer

    To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

    Pump

    The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kW, the gas flow is 0.6m³/Min.

    File Format

    The software of bending machine is self-developed. Input file format supports .Dxf.Plt .AI.

    We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

    Our Service
    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control

    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.

    Large 3D Channel Letter Bending Machine Ejon ET80 3000KG Weight 5.0kW Power CNC Control

    After-Sales Service

    * Training how to install the machine;

    * Training how to use the machine;

    * Engineers available to service machinery overseas.
