Tianjin Ejon Flying Science And Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | EJON |
| Certification : | ce |
| Supply Ability : | 1000 Set/Sets per Year |
| Price : | $3,500.00/sets 1-2 sets |

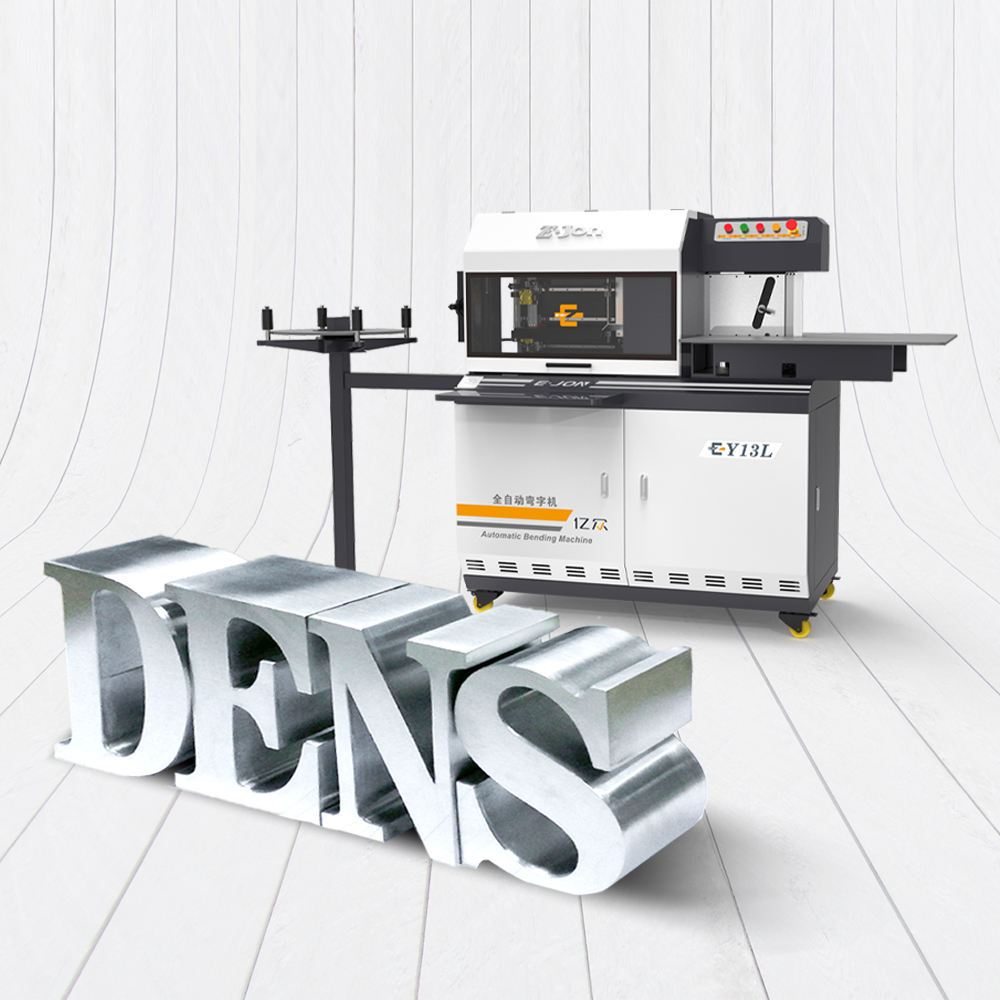

Exclusive design of aluminum profile bending machine, with both
positive and negative double side slotting methods, slotting can be
realized at any angle. Independent research and development of the
software system, with the material database, arc high, easy to deal
with small angle arc, large angle extrusion arc, to achieve the
perfect match with the letter.
SPECIFICATIONS | ||||||
Feeding System | Roller circulation feeding system | |||||
Slotting System | Alloy milling cutter slotting system | |||||
Bending System | Double roller bearing extruding bending system | |||||
Suitable Material | Aluminum plate | |||||
Material Height | 20~130mm | |||||
Material Thickness | 0.4~1.2mm | |||||
Control System | 4 axis control system | |||||
Min. Bending Angle | R10 | |||||
File Format | Dxf.Plt.Ai | |||||
Power | AC220V, 50Hz, 2.0Kw | |||||
Air Supply | 0.6m3/Min | |||||
Total Weight | 200 kg | |||||

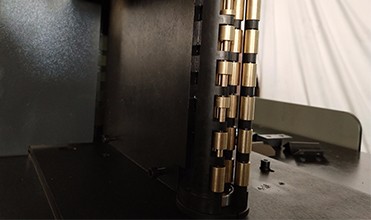

The customized feeding roller ensures the feeding precision,
meanwhile does not scratch the material.
Alloy milling cutter slotting system for Aluminum plate and
Aluminum profiles.
The well-designed bending mechanism improves the molding degree.
To use the device, you need to install the control card in your
computer and then connect to the bending machine and install the
software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to
install the control card.
The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.
The software of bending machine is self-developed. Import file
format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 1320(L) * 720 (W) * 1440(D) | |
Weight | 200KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
|
|
