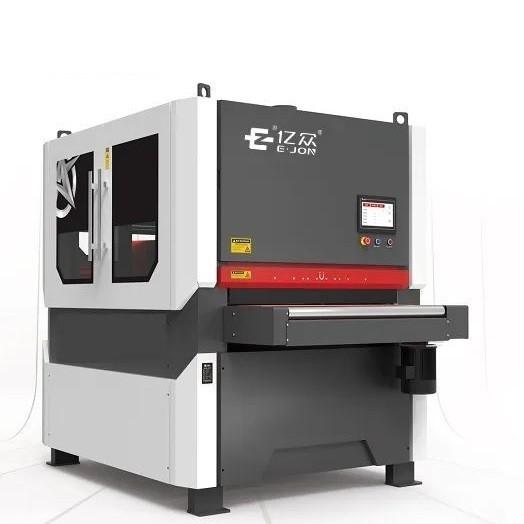

Ejon YZ1000S Industry Panel Sheet Metal Automatic Sanding Deburring Machine 25-1000 mm

Product Categories

Steel Deburring Machine [27]
Channel Letter Equipment [266]
Channel Letter Bending Machine [159]
Laser Welder Machine [6]
Metal Sign Grinding Machine [1]
CNC Letter Slotting Machine [1]
CNC Laser Cutting Machine [1]
CNC Router Machine [1]
3D Printer Machine [1]

Tianjin Ejon Flying Science And Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ejon YZ1000S Industry Panel Sheet Metal Automatic Sanding Deburring Machine 25-1000 mm

Ask Lasest Price
Brand Name :	Ejon
Supply Ability :	5000 Set/Sets per Year
Price :	$23,000.00/sets 1-2 sets

Add to Cart

Product Details
Company Profile

Ejon YZ1000S Industry Panel Sheet Metal Automatic Sanding Deburring Machine 25-1000 mm

Product Description

Ejon YZ1000S AUTOMATIC DEBURRING AND SANDING MACHINE can uniformly remove the burrs of parts surface, contour edge and hole edge, can chamfer evenly and realize hair drawing on workpiece surface, though linear processing with multiple sets of grinding wheel’s rotating, revolving and alternating. It becomes one of the most popular corollary equipment in the field of metal sheet parts deburring for production line of laser cutting, CNC punching as well as other machining process.

Ejon YZ1000S Industry Panel Sheet Metal Automatic Sanding Deburring Machine 25-1000 mm

Application

SCOPE OF APPLICATION

* Slag and burr produced by laser cutting, flame, plasma and other hot processing

* Burrs or sharp edge produced by cold working, such as stamping or cutting

Specification

ITEM	PARAMETERS
Processing range	W:1000mm; H:80mm; L:Unlimited
Delivery method	Conveyor belt
Spindle speed	0-1000r/min(Variable frequency adjustable)
Alternate motor	200W Brushless Motor Chuangwei
Transfer speed	Frequency conversion 0.5~14 m/min
Grinding wheel set	4 sets
Fixed method	Negative pressure plus magnetic suction double system
Dimensions	169025602100mm
Machine warranty period	1 year
Application	Stainless steel, Galvanized plate, Alloy, Carbon steel, iron, Coated sheet, Copper plate

Main Features

Flexible Processing+

Visual Free Adjustment

Digital monitoring of grinding friction resistance, the grinding quantity and travel parameters can be convenient and quickly adjusted, which can only polish the workpiece contour and sharp edge without damaging the surface, and effectively protect the coating of the workpiece.

Double Absorption Techniques

* Turbine vacuum adsorption technology

The workpiece including the bended and deformed workpieces can be firmly adsorbed

and polished, which eliminates the loss pressure or failure of the vacuum
adsorption system due to blockage.

* Magnetic suction system

The negative pressure adsorption system does not need to be opened when the workpiece can be magnetically adsorbed, and the power consumption of the equipment will be greatly reduced, saving production cost to the maximum extent.

General Consumables

The grinding wheels adopt general consumables without special customization or designated suppliers to buy, which eliminates the limitations of consumables binding to

imported equipment or some domestic brand equipment and greatly reduces the user's cost.

Dust Collector Port

Equipped with the port of pulse dust collector, which can suck away the dust generated in the process of working, and collect them in the dust collection box to keep the working environment clean. The dust collector itself has recoil function, which can automatically clean the filter to prevent dust removal failure due to blockage (optional: 1. Separate dust removal equipment; 2. Link to existing plant equipment ).

Company Profile

Tianjin Ejon Flying Science and Technology Co., LTD., was founded in 2017, located in Tianjin, China, is specialized in the production of CNC automation equipment and has independent intellectual property rights and a high-level research and development team. The factory covers an area of more than 2,500 square meters, annual sales is more than 3,000 sets which are exported to hundreds of countries and regions. The main products including automatic channel letter bending machine, automatic grooving machine, automatic grinding machine, automatic deburring machine, laser welding machine, laser cutting machine, etc., are economic, durable and popular with dealers, distributors and the users.
Our professional engineers have rich experience to handle different kinds of technical problems.
Our passionate and patient customer service personnel are ready to solve all kinds of problems for buyers any time.
Our agents of several countries can provide local service in time. Meanwhile, we also recruit agents all over the world.

We are willing to be your best partner for win-win cooperation!

click here to visit our store

Polishing Effect

Packing & Delivery

ITEM	PARAMETERS
Size	1690mm2560mm2100mm
Weight	2700
Packaging details	wooden box

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. How to use?

We will provide manuals (electronic versions)of the electrical system, wiring diagrams, operation manuals, technical guides, maintenance manual, etc.

You can consult the service personnel about any problem related to the operation of the machine online at any time.

2. How can we guarantee quality?
IQC (Incoming Inspection) → IPQC (InPut Process Quality Control) → OQC (Outgoing Quality Control) → QA (Finished product Quality Assurance)

3. How long is the warranty?

The whole equipment (except wearing parts) is guaranteed for one year and maintained for life.

4. Are you factory?

Yes, we are a factory which has more than 10 years of production experience, you can get the machine with a very competitive price.

You can also buy other CNC equipment from us, such as laser cutting machine, automatic slotting machine, channel letter bending machine, laser welding machine, etc. https://tjejon.en.alibaba.com/productlist.html

5. Can I be your agent?

Sure, we are developing our business all over the world, and we also need more agents, welcome to join us. You can get the most preferential price if you have become our agent.
