    Super Outlet Hand-held Fiber Laser Welding Machine 1000W 1500W 2000W for Metal Industry

    Ask Lasest Price
    Brand Name : Fiber laser welding machine
    Supply Ability : 5000 Set/Sets per Year
    Price : $8,500.00 - $13,500.00/sets
    • Product Details
    • Company Profile

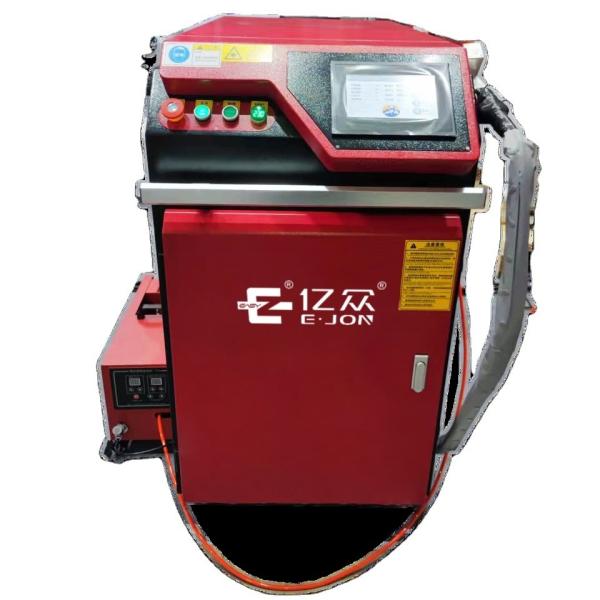

    Super Outlet Hand-held Fiber Laser Welding Machine 1000W 1500W 2000W for Metal Industry

    Product Overview

    Product introduction

    Hand-held optical fiber welding machine, using the latest generation laser generator, is equipped with swing welding head developed by our company. This machine fills the blank of hand-held welding. It has the advantages of simple operation, beautiful welding seam and fast welding speed. It is suitable for welding aluminum alloy plates, stainless steel plates, iron plates, galvanized plates and other metal materials, and can perfectly replace the traditional argon arc welding, arc welding and other processes.
    Product advantages: 1. The welding speed is 2-3 times faster than the traditional welding speed. It can help you save at least two welders every year. 2. Low consumption of laser welding materials and long service life. 3. Easy to operate, no welding work permit is required, and novices can weld beautiful products. 4. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost. 5. No deformation, no welding marks and firm welding. 6. Safer and more environmentally friendly. 7. The self-developed swing welding head makes up for the shortcoming of small laser spot, expands the tolerance range and weld width of the workpiece, and obtains good weld forming effect. Application materials: It is suitable for welding stainless steel plate, aluminum alloy plate, iron plate, galvanized plate, carbon steel and other metal materials, and can replace the traditional argon arc welding, arc welding and other processes. Application field: Hand-held optical fiber welding machine can be widely used in complex and irregular welding processes in cabinets, kitchens, stairs, elevators, racks, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel homes and other industries.
    SALES AND SERVICE NETWORK
    Super Outlet Hand-held Fiber Laser Welding Machine 1000W 1500W 2000W for Metal Industry

    Product parameters

    Item
    Parameter
    Name
    Fiber laser weldingmachine
    Power
    1000W/1500W/2000W
    Laser wave length
    1070-5% to 1070+5%
    Fiber length
    Standard layout10m
    Aiming & positioning
    Red light indication +tool
    Main frame power consumption
    2.5KW
    Control model
    TTL level/GUI
    Welding speed
    0-120mm/s
    Cooling system
    Integral constant temperature
    Working environment range
    15°C-35°C
    Working environment humidity range
    <70%
    Welding thickness
    0.1-5mm
    Welding gap
    ≤0.2mm
    working voltage
    AV220V(1000W)AV380(1500W)
    Host floor area
    2.5M*1.0M
    Consumable
    Protective lens

    The samples:

    Super Outlet Hand-held Fiber Laser Welding Machine 1000W 1500W 2000W for Metal Industry
    Super Outlet Hand-held Fiber Laser Welding Machine 1000W 1500W 2000W for Metal Industry
    Super Outlet Hand-held Fiber Laser Welding Machine 1000W 1500W 2000W for Metal Industry
    Super Outlet Hand-held Fiber Laser Welding Machine 1000W 1500W 2000W for Metal Industry
    Super Outlet Hand-held Fiber Laser Welding Machine 1000W 1500W 2000W for Metal Industry
    Super Outlet Hand-held Fiber Laser Welding Machine 1000W 1500W 2000W for Metal Industry
