Tianjin Ejon Flying Science And Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | EJON |
| Certification : | ce |
| Supply Ability : | 5000 Set/Sets per Year |
| Price : | $6,500.00/sets 1-4 sets |

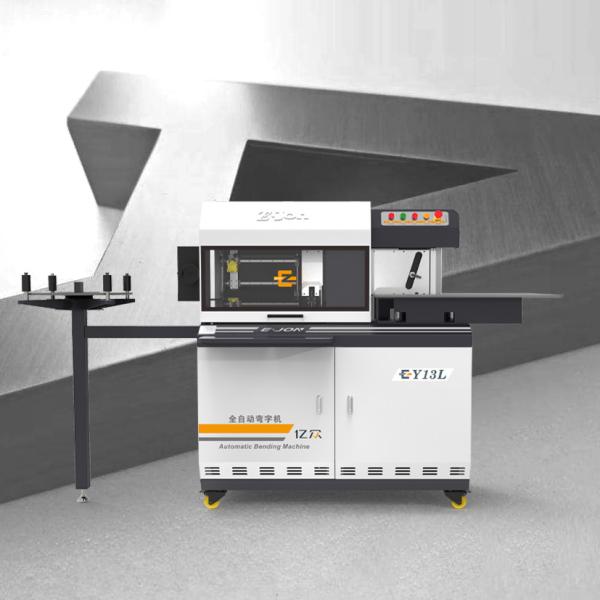

Multifunction channel letter bending machine, Using mechanical hand alternately feeding structure, the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings, avoid scratching to the material while improving the feeding holding power.
SPECIFICATIONS | ||||||
Feeding system | Double ball-screw alternate feeding system | |||||
Slotting System | Plane cutter | |||||
Bending System | Double blade alternate bending system | |||||
Suitable Material | Stainless steel, Galvanized steel, Aluminum plate | |||||
Material Height | 20~130mm | |||||
Material Thickness | 0.4~1.2mm | |||||
Accuracy | ±0.1mm | |||||
Min. Bending Angle | R6 | |||||
File Format | Dxf.Plt.Ai | |||||
Power | AC220V、50Hz、3.0Kw | |||||
Air Supply | 0.6m3/Min | |||||
Control System | 4 axis control system (2 axis servo control) | |||||
NO! The casting on Clamping increases the grasping force, meanwhile
does not scratch the material.
NO! The double ball screw of feeding design ensure the feeding speed
and precision as well as stability.
NO! High strength alloy cutters are used for slotting knifes, each
knife has 8 angles, no need to sharpen, meanwhile the slotting mechanism adds a new air blowing and cooling function
to extend the service life of the cutter while ensuring smooth
slotting.
The encoder module is the key component of the the relation
equipment precision, and the precision casting is used to ensure
the performance of the high precision encoder.750 W high-power servo motor also improves the positioning accuracy and
the stability of high-speed bending.
To use the device, you need to install the control card in your
computer and then connect to the bending machine and install the
software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to
install the control card.
The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.
The software of bending machine is self-developed. Import file
format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format.
Then open the operating software, select the document.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 1330(L) * 740 (W) * 1500(D) | |
Weight | 350 | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
