Max Cutting Speed 50 M/Min 1500W Fiber Laser Cutting Machine

Ask Lasest Price
Brand Name :	Ejon
Supply Ability :	2000 Set/Sets per Year
Price :	$13,000.00/sets 1-2 sets

Add to Cart

Product Details
Company Profile

Max Cutting Speed 50 M/Min 1500W Fiber Laser Cutting Machine

Company Profile

Click here for more information

Product Overview

Metal Fiber Laser Cutting Machine

YZ-RC1500W Fiber laser cutting machine adopts gantry double driving structure, which is characterised by high-speed positioning of the equipment, fast dynamic response and good stability. The transmission components such as reducer, guide rail and rack and pinion are of world famous brand, which highly guarantees the longer service life of the machine.

Application industries: metal cutting, electrical switch manufacturing, aerospace, grain machinery, textile machinery, engineering machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, special automobile, household appliance manufacturing, tool processing, it manufacturing, petroleum machinery manufacturing, food machinery, diamond tool welding, gear welding, metal material surface treatment, decorative advertising, laser external processing services and other mechanical manufacturing and processing industries.
Applicable materials: medium and thin metal plates, such as carbon steel plates, stainless steel plates, aluminum alloy plates, galvanized plates, electrolytic plates, silicon steel, titanium alloys, aluminum zinc plates and other metal materials.

Max Cutting Speed 50 M/Min 1500W Fiber Laser Cutting Machine

PRODUCT SPECIFICATIONS

Item	Data	Item	Data
Laser type	Fiber laser	X-axis stroke	1500 mm
Laser working medium	Optical fiber	Y-axis stroke	3000 mm
Laser wavelength	1060-1080 nm	Z-axis stroke	220 mm
Rated output power	1500 W	Power consumption of equipment	16 KW
Beam quality (BPP,mm*mrad)	1.27	Total power protection level	IP54
Effective cutting range	1500 mm×3000 mm	Rated power parameters	220 V, 50 Hz
Positioning accuracy	±0.05 mm/m	Maximum idle speed	50 m/min
Repeat positioning accuracy	±0.03 mm/m	Overall dimensions	4500 mm2400 mm1800 mm

Processing Capacity

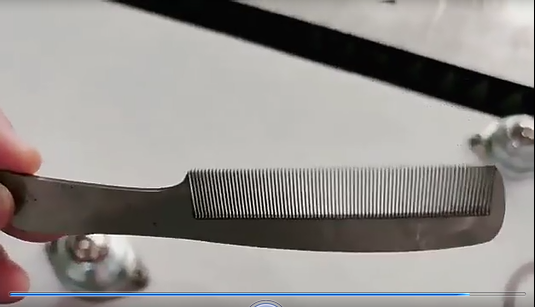

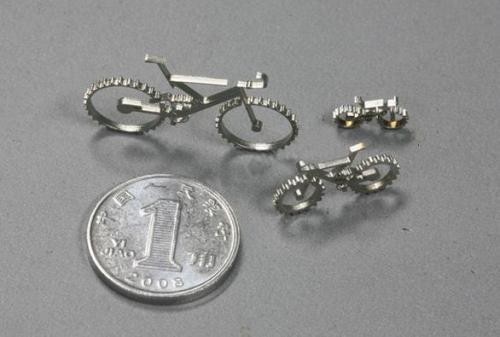

General cutting range: 0.4-15 mm carbon steel; 0.4-7 mm stainless steel; 0.4-4 mm aluminum plate

Detailed information:

PRODUCT CONFIGURATION

Mechanical Motion System

The bilateral driving structure of the beam includes the beam body and the bed.

The beam body driving mechanism and height compensation mechanism realize the horizontal and vertical movement of laser cutting head.

The limit switches at both ends of the travel in X and Y direction control the travel, and the elastic cushion pads at both sides are supplemented.

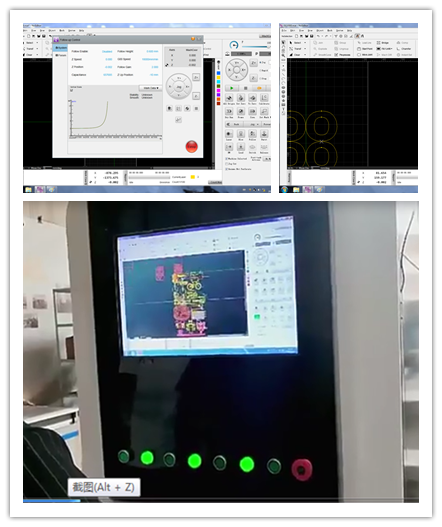

Control System

	FUNCTION
*	Multi-language
**	Fast response surface following
*******	Cutting back
********	Linear / arc interpolation and slit compensation
*****	USB and broadband interface
******	AC servo drive system and AC servo motor

Fiber Laser

Adopts the single core junction semiconductor pump laser as the pump source.

1. Excellent beam quality (BPP) with small divergence angle, constant BP in the full power range, and small spot can still be obtained with long focal length;
2. Special wavelength (1070nm), with the unique ability to cut high reflective materials such as aluminum, copper, brass etc;
3. The laser is transmitted through the optical fiber, basically without transmission loss;
4. Modular design, "Plug and Play", small in size, easy to install, no need to maintain the laser and beam transmission system.

MY ADVANTAGES:

Comparison of Different Types of Lasers

ITEM	FIBER LASER	CO₂ LASER
Wall-plug efficiency	30%	10%
Consume power	1*kW	＞3*kW
BPP	＜2.5	6
Semiconductor pump life	＞100,000 h	NA
Cutting speed	4*	1*
Special gas demand	No need	Need
Maintaining	No need	Need
Flexible machining	Very suitable	Unsuitable
Environmental adaptability	Shock, oil and dust proof	Need shock absorption and sealing
Stability	Optimum	Good
Absorptivity - Steel	35%	12%
Absorptivity -aluminum	7%	2%
Parts to be replaced	Each semiconductor pump source is independent. The damage of one semiconductor does not affect the normal operation of the laser, but the power will be reduced.	The laser needs to be supplemented with gas and the reflector lens needs to be replaced.

Laser Cutting Head

1. Automatic cutting height adjustment

2. Suitable for lenses with almost any focal length.

3. Focal length and nozzle height can be flexibly adjusted, including the coaxial adjustment of the lens and nozzle in

X-Y direction.

Quality Control

Strict Inspection &

Keep Improving

Every small part has been tested by the quality department

Parallelism detection of guide rail and rack

Straightness measurement of guide rail, ensuring accuracy within 0.03 mm

SALES AND SERVICE NETWORK

FAQ

Q1:Are you factory?

A1:Yes. So you can get the machine at a preferential price.

Q2:How long is the warranty?
A2:One year for the machine, two years for the laser.

Q3:How about the after-sale service?
A3:We will respond to your demand within 24 hours via email or the platform's official communication tool, and send relevant documents or materials remotely, providing technical support online.

In the case of non-man-made damage to the machine, within the scope of free parts agreed by our both part, we will send free parts within 48 hours (except imported parts or customized parts).

Q4:Do you have any other related machine or spare parts to sell?
A4:Yes. According to the materials (metal, acrylic, plastic……) to be cut, the cutting machine has different types. You can tell us your demand and we'll recommend a suitable one to you.

We also sell:

channel letter bending machine

https://tjejon.en.alibaba.com/productgrouplist-806140756/Automatic_Bending_machine.html

laser welder

https://tjejon.en.alibaba.com/productgrouplist-916516909/Handheld_laser_welding_machine.html

automatic slotting machine

https://tjejon.en.alibaba.com/productgrouplist-806115550/Automatic_Slotting_machine.html

deburring machine

https://tjejon.en.alibaba.com/productgrouplist-916771236/Metal_Polishing_Machine.html

channel letter grinding machine

https://tjejon.en.alibaba.com/productgrouplist-825213921/Grinding_machine.html

and related spare parts and materials.

You can buy all of these at a lower price especially when you have made a big order or need a long-term supply.

Q5:If I have no experience working with this machine, does it easy to learn and how about the safety?

A5:You can easily learn how to use it by watching video or reading the manual, it takes very little time. Any question can be consulted online at any time.

Safety: 1) Laser part is marked with an icon to indicate the laser output at this place;
2) Outer shell of the laser is grounded to avoid personal injury caused by leakage of the equipment shell;

3) Laser protective glasses is equipped;

4) Emergency stop switch can stop and power off the laser immediately in case of emergency;

5) Transmission optical fiber is protected by special protective sleeve to prevent laser leakage;

6) Any laser leakage caused by the breaking of the optical fiber can be detected by the sensor, then the control center will stop the light output and send out an alarm.
