| Brand Name : | EJON |
| Certification : | ce |
| Supply Ability : | 1000 Set/Sets per Year |
| Price : | $11,500.00/sets 1-2 sets |

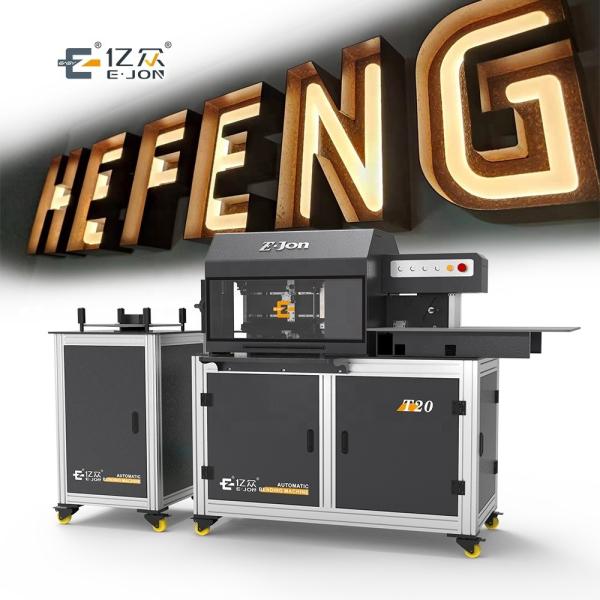

T20: 4 sets of servo motors control system.
1. Aluminum profile frame and chrome-faced.
2. The specially designed extra long alternate feeding mechanism.
3. Double ball screws drive make it more powerful, more fast and
higher precision.The mechanical hand feeding design,continuously
feeding by the two clamps, can avoid feeding slipping and improve
feeding precision. It is the first choice for producing the word
shell of LED, aluminium letters, stainless steel characters,
punching words and resin words, etc.
SPECIFICATIONS | ||||||
Feeding system | Double ball-screw alternate feeding device | |||||
Slotting System | Plane cutter and alloy milling cutter system | |||||
Bending System | Double blade alternate bending system | |||||
Suitable Material | Stainless steel, Galvanized steel, Aluminum plate, Aluminium
profile | |||||
Material Height | 20~200mm | |||||
Material Thickness | 0.4-2mm for flat aluminum | |||||
Control System | 4 axis servo control system | |||||
Min. Bending Angle | R6 | |||||
File Format | Dxf.Plt.Ai | |||||
Power | AC220V、50Hz、3.0Kw | |||||
Air Supply | 0.6m3/Min | |||||
Total Weight | 500Kg | |||||
1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.
2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.
3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.
4) 4 sets of Panasonic servo control system,SMC pneumatic component,chrome-faced,computer and air pump.
The mechanical hand feeding design, continuously feeding by the two
clamps which can avoid feeding slipping and improve feeding
precision.
The double ball screw of feeding design ensure the feeding speed
and precision as well as stability
Double-cutter slotting, using plane cutter for Galvanized sheet and
Stainless steel; using milling cutter for Aluminum plate and
Aluminum profiles.
* Machines videos.
* Sample testing support.
* Factory video review.
* Machine operation video and manual.
* Engineers available to service machinery overseas.
* Online support and Videl call support.
Packaging | ||
Size | 1600(L) * 750 (W) * 1620(D) | |
Weight | 550KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
Packaging | ||
Size | 660(L) * 660(W) * 1110 (D) | |
Weight | 45KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
|
|
