Tianjin Ejon Flying Science And Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | EJON |
| Supply Ability : | 5000 Unit/Units per Year |
| Price : | $3,700.00/sets 1-4 sets |
Overview
Quick details
Place of Origin: Tianjin,China
Brand Name : EJON
Product Name: Channel letter bending machine
Model Number: E9L
Condition : New
Key Selling Point: Brimless Letter Making Machine,easy to operate
Applicable Industries:Adverting Company.
Material Thickness:0.4mm-1.2mm
Suitable Material: Aluminum Flat
After-sales Service:Engineers available to service machinery overseas
Slotting :Plane cutter
Automation: Automatic
Product Description
Product Application
EJON E9L ,professional led advertising signs ,customized flat aluminum materials,is a high-end automatic channel letter bending machine.
E9L equippped with high-power motor and driver to ensure the stability of feeding ,slotting and bending .The self-developed software system,with its own material database and high arcing .Double blading alternate bending structure,adopts the bends structure cast by ductile iron,which has good shock absorption and high structural strength,reduces the number of parts and components,equipped with high-power servo motor,accurate positioning ,fast response,smooth operation,effectively improve the positioning accuracy of high-speed bending,the minimum forming Angle up to R6.
It adopts the plane knife to make sure the slot smooth and free of burrs,it is easy to process different thickness of material.
The specially designed feeding roller is processed by CNC lathe to ensure the feeding accuracy and avoid scratching the material.The pneumatic feeding unit for free adjustment of material depth.Equipped with encoder compensation mechanism to ensure feeding accuracy.The feeding support adopts an integral casting structure,which effectively avoids the deformation generated during the feeding and ensure the stability of feeding.
SPECIFICATIONS
| Feeding system | Roller circulation feeding system |
| Slotting system | Alloy plane cutter slotting system |
| Bending system | Double blade alternate bending system |
| Suitable Material | Aluminum flat |
| Material Height | 20-130mm |
| Material Thickness | 0.4-1.2mm |
| Control system | 4 axis control system(1 servo control) |
| Min. Bending Angle | R6 |
| File Format | Dxf.Plt.Ai |
| Power | AC220V,50Hz,2.0Kw |
| Air Supply | 0.6 m3/Min |
| Total Weight | 200Kg |
Detail of the part of the machine:

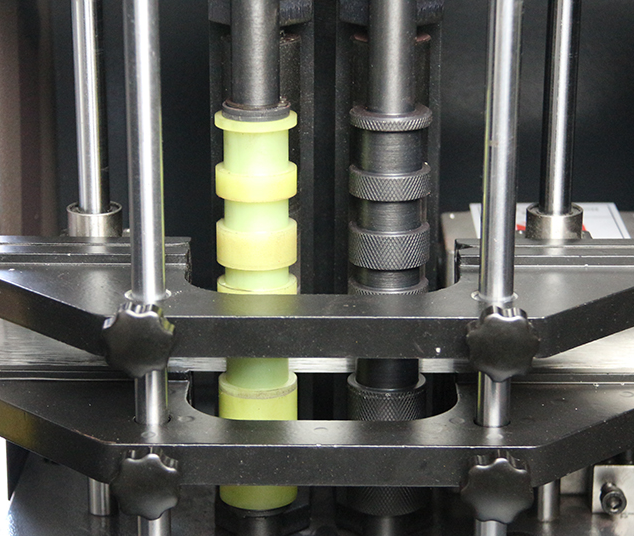

1.Feeding System
The feeding support adopts an integral casting strucure ,which effectively avoids the deformation generated during the feeding and ensures the stability of feeding.

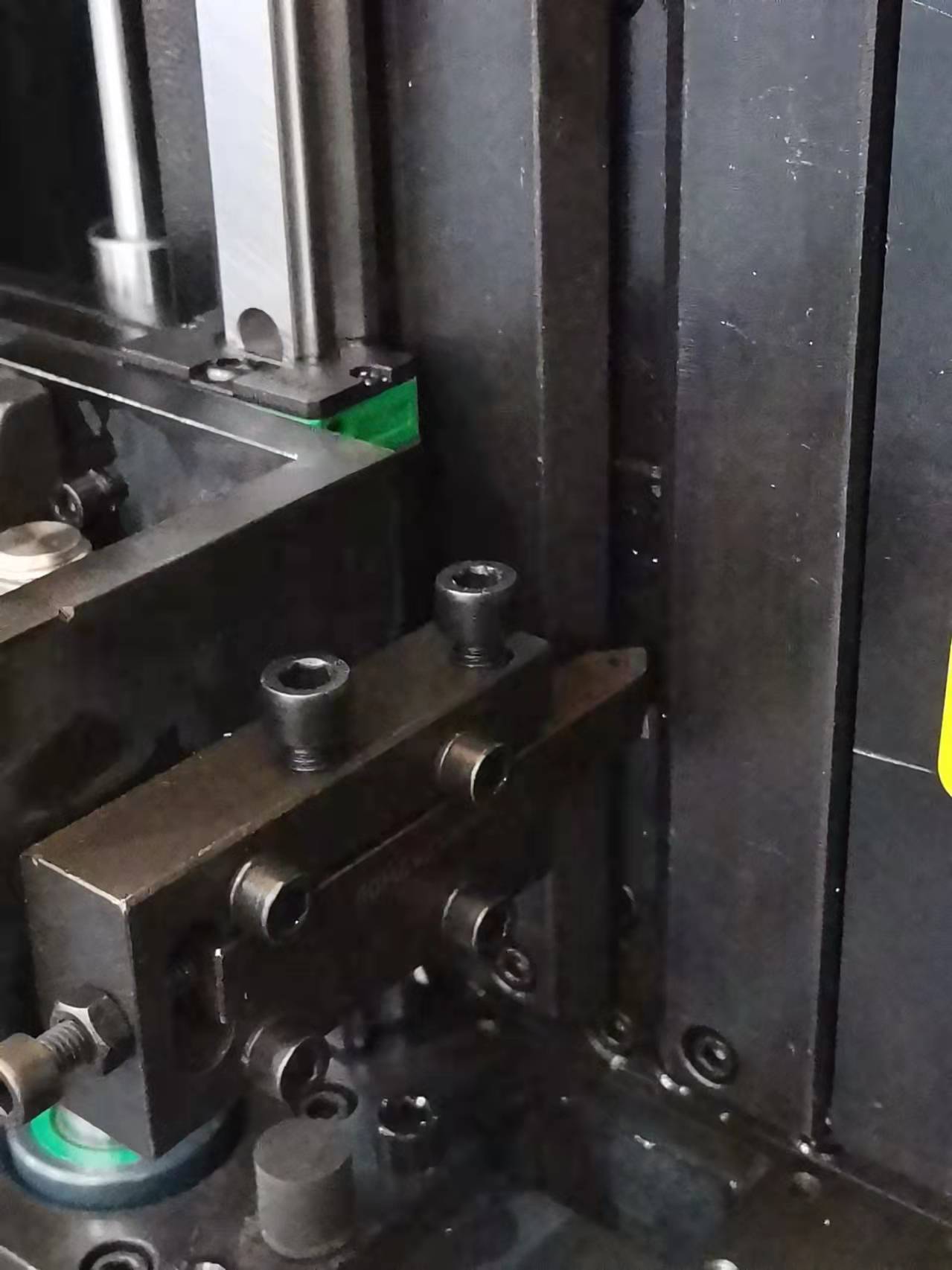

2.Slotting System
High strength alloy cutters are used for slotting knives ,each knife has 8 angles,no need to shapen,greatly improve the working life.
3.Bending system
Double bends alternate bending structure,adopts the bends stucture cast by
ductile iron,which has good shock absorption and high structual strength ,reduce the number of parts and components,equipped with high-power servo
motor,accurate positioning ,fast response ,smooth operation,effectively improves the positioning accuracy and the stability of high-speed bending,the
minimum forming Angle up to R6.
Model of written characters:
Packing of the machine:
Loading Container:
Our factory pictures:
Our exhibition:
Contact Way:
|
|
