| Brand Name : | Ejon |
| Certification : | ce |
| Price : | $11,500.00/sets >=1 sets |
T20: 4 sets of Delta servo motors control system.
1. 2mm Aluminum plate.
2. The specially designed extra long alternate feeding mechanism.
3. Double ball screws drive make it more powerful, more fast and
higher precision.The mechanical hand feeding design,continuously
feeding by the two clamps, can avoid feeding slipping and improve
feeding precision. It is the first choice for producing the word
shell of LED, aluminium letters, stainless steel characters,
punching words and resin words, etc.
SPECIFICATIONS | ||||||
Feeding system | Double ball-screw alternate feeding device | |||||
Slotting System | Plane cutter | |||||
Bending System | Double blade alternate bending system | |||||
Suitable Material | Stainless steel, Galvanized steel, Aluminum plate | |||||
Material Height | Stainless steel, Galvanized steel, Aluminum: 15mm-200mm/ | |||||
Material Thickness | 0.4-2mm | |||||
Control System | 4 axis servo control system | |||||
Min. Bending Angle | R6 | |||||
File Format | Dxf. Plt. | |||||
Power | AC220V、50Hz、3.0Kw | |||||
Air Supply | 0.6m3/Min | |||||
Total Weight | 600Kg | |||||
1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.
2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.
3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.
4) 4 sets of Delta servo control system, maximum can process 2mm thickness aluminum.
The mechanical hand feeding design, continuously feeding by the two
clamps which can avoid feeding slipping and improve feeding
precision.
The double ball screw of feeding design ensure the feeding speed
and precision as well as stability
Double-cutter slotting, using plane cutter for Galvanized sheet and
Stainless steel; using milling cutter for Aluminum plate and
Aluminum profiles.

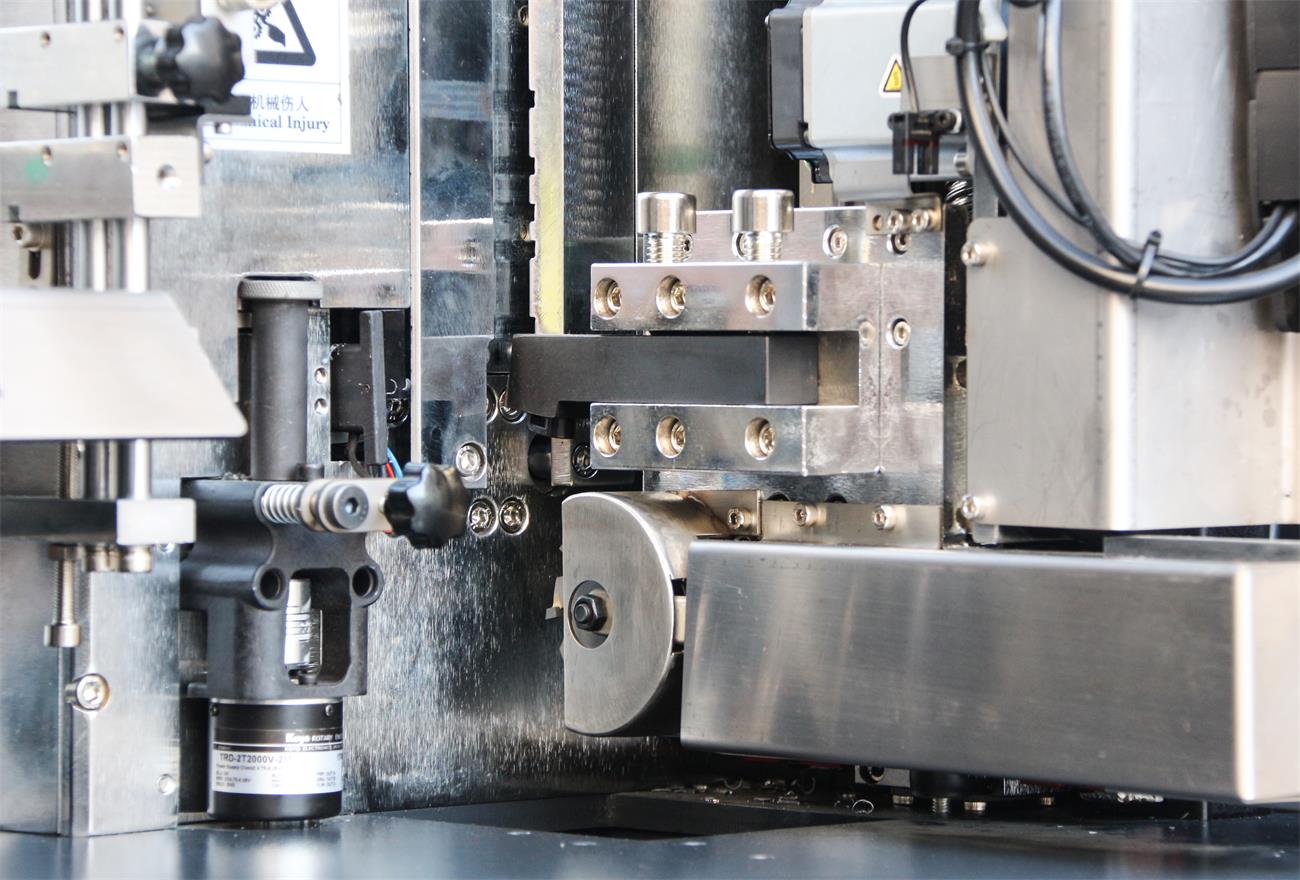

The encoder module is the key component of the the relation
equipment precision , and the precision casting is used to ensure
the performance of the high precision encoder.
The software of bending machine is self-developed. Import file
format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Contact Bobby, 17622751627/wechat/whatsapp
* Engineers available to service machinery overseas.
Packaging | ||
Size | 1500(L) * 770 (W) * 160(D) cm | |
Weight | 600KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
Packaging | ||
Size | 650(L) * 650(W) * 1110 (D) cm | |
Weight | 50KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
|
|
