Overview

Details

Place of Origin :Tianjin,china Brand Name:EJON

Conditon :New Model Type: T13 Suitable Material : Stainless steel,Galvanized plate,Aluminum plate and profile Automaic :Automatic

After-Sales Service:Video/Oline support,Engineers Service Power :CNC

Slotting Method :Plane cutter and Milling wheel cutter slotting Trip:10-130mm

Bending Method:Double Tools Alternate Bending System Warranty of core:1 Year

Material Thickness: 0.4-1.2mm Min.Bending Angle:R6

Certification: CE Machine weight:500kg

Supply Ability

Supply Ability:2000 Sets/Year

Packing &Delivery

Packaging Details:The Export Non-Fumigation Wooden Box

Port :Tianjin Port Or other China Port

Delivery Time : 10-20 Working Days

Product Description

EJ0N T13 with Delta servo multifuction automatic bending machine,it is widely used in Seiko letter,Resin letter,Brimless letter,Edged Aluminum letter and other letters.Suitable material include Stainless steel,Galvanized plate,Aluminum plate and Aluminum profile.

Manipulator alternately feeding structure,the material clamps are casted which can avoid scratching the material,meanwhile improving the feeding holding.Using air pressure to press the material,avoid material uneven and ensure the smooth feeding.The double ball screw is matched with nylon gear transmission for precise positioning,which greatly improves the feeding speed and stability of the machine.The specially designed super-long alternate feeding mechanism adopts

servo control control system and is driven by high-quality double screws.It has the advantages

of large torgue,high precision and fast speed,ensuring smooth feeding process and avoiding

material deformation.

Plane cutter can slot all kinds of materials.The linear guideway is matched with the ball screw,with 750W high-power Delta servo motor,greatly improve the feeding speed and stability.

High strength alloy cutters are used for slotting knifes.,each knife has 8 angles,no need to sharpen,greatly improve the working life.

Double-knife alternate bending structure,the curved knife structure cast by ductile iron,good shock absorption,high structural strength,reduced number of parts splicing,high-power servo motor,high-speed bending work under the bending mechanism,the bending mechanism is permanently deformed,which effectively improves the positioning accuracy and the stability of the high-speed bending.

T13 Machine part details

Equipped with 4-axis high -power 750W full Delta servo control system to ensure the accuracy and stability of feeding ,slotting ,heightening and bending.

Imported SMC electrical components,high stability and

durability.

Extra long bending span,20cm longer,effectively avoiding

affecting the forming angle during processing.

Punch function avaliable as your choice.

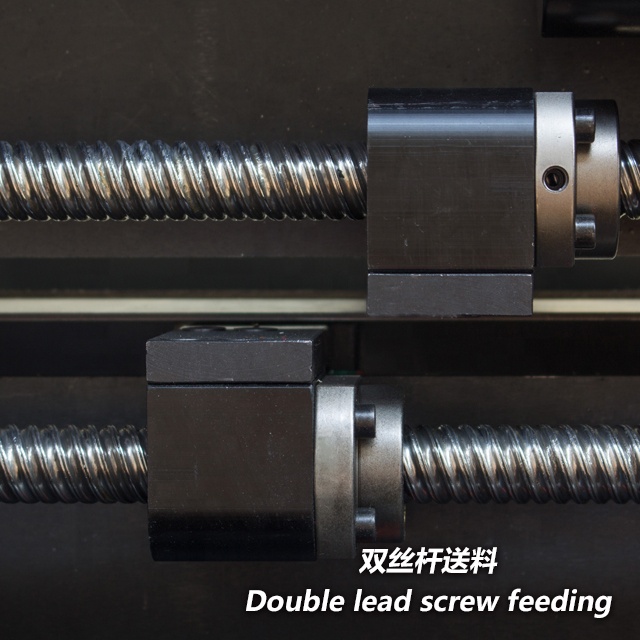

Feeding Parts :The feeding structure adopts double ball

screw matched with nylon gear transmission ensuring

the precise positioning,smooth feeding,greatly improving

the feeding speed and stability.

Slotting Parts: Double blade alternating slotting ,can

produce Stainless steel,Galvanized plate, Aluminum plate

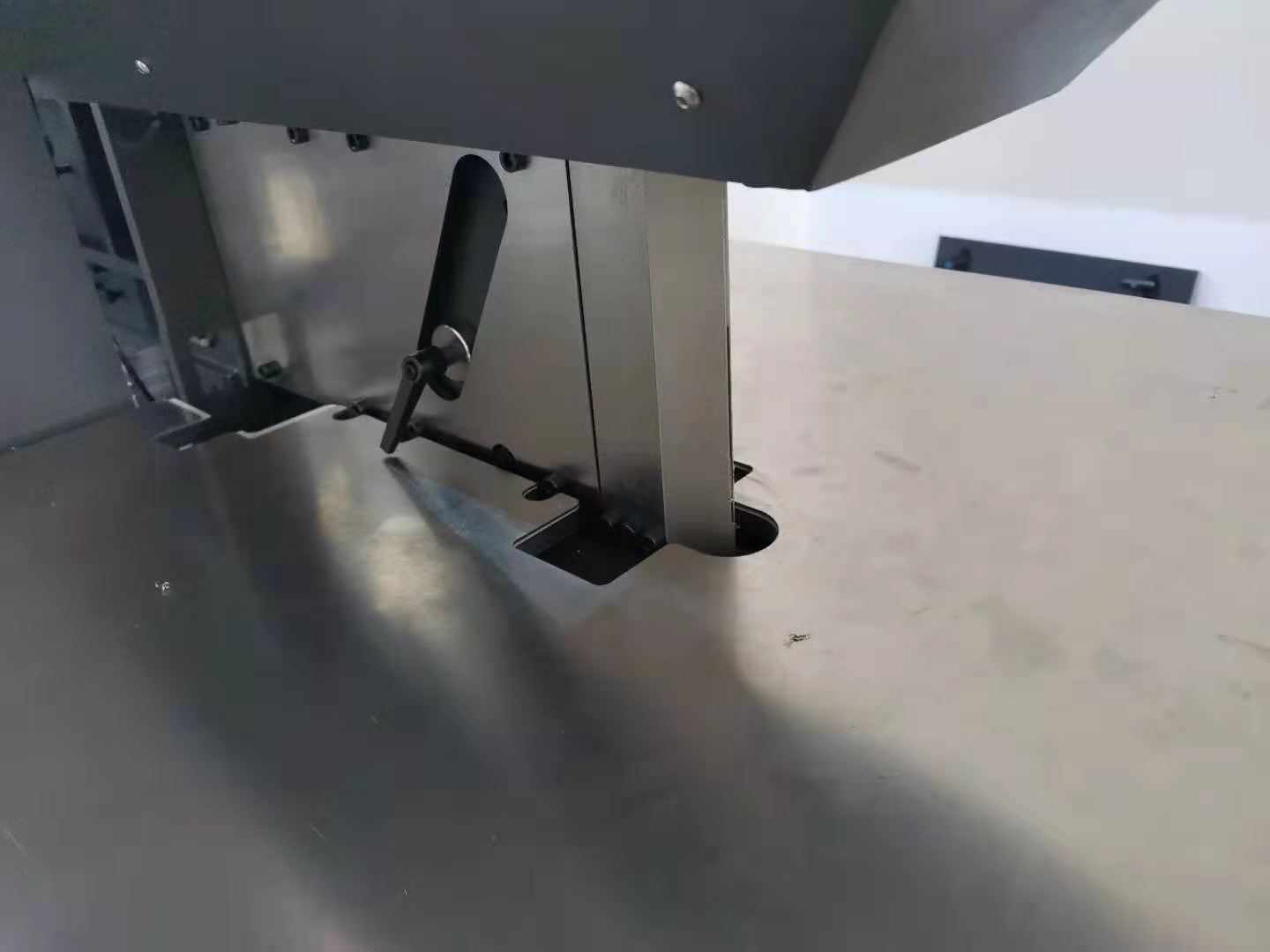

Bending Parts: Double blade alternate bending system,the bending adopts servo motor,high torque,high forming

degree.

Sample Showing

How to learn machine operate

1. Operation Manual U disk

Provide U disk with machine which have detail specific english operational manual and videos.

2. Network Service

Through Wechat,Whatsapp,Skype,E-mail,Team viewer provide online service.

3. Factory Visiting

Welcome customer to visit our factory to learn how to operate the machine.

Supporting Facility

Computer Pump File Format

To use the device,you need to The use of equipment should The software of bending

install the control card in your be equipped with machine is self-developed. computer and then connect to AIR compressor,we suggest Import the format supports

the bending machine and install that the selection of more Dxf.Plt.Ai.We recommend

the software computer. than 4kw,the gas flow is using Coredraw or adobe

Configuration:XP system or 0.6m3/Min illustrator to complete

window7 32-bit system,and the file after the export file

requiresa pcl card slot to to Dxf.Plt.Ai format.Then

install the control card. open the operating software,

select the document

EXhibition

Our company

Certification

PACKING AND SHIPPING

Our service

1.Whole machine with one year warranty.

2.Free training course at our plant or on line.

3.After the warranty period,,we will provide the consumable parts

at an agency price when you need replacement.

4.Before machine delivery,we will install all parts and test machine for you.We will take machine's working video and machine phone for you for checking,if confirmed there're no problem,then we'll deliver machine.

5.After machine arrived,you just need connect power supply,software etc,it's more easily for you.If you're worried,we can take a teaching video for you at that time.By the way,during the production of machine,we also can share the process with you.

6.As for training,firstly we'll take more teaching video for you,and we also can remote control,most important,if you need,we can provide our technicians for on-site training and on-site teaching.And if you have time,welcome to visit our company,you can operate and learn the machine by yourself.

7.After machine shipped,I'll prepare some documents,like B/L,Packing list,Commercial invoice,Sales contract,CE Certification for helping you pick up your machine.
