| Brand Name : | EJON |
| Price : | $20,000.00/sets >=5 sets |

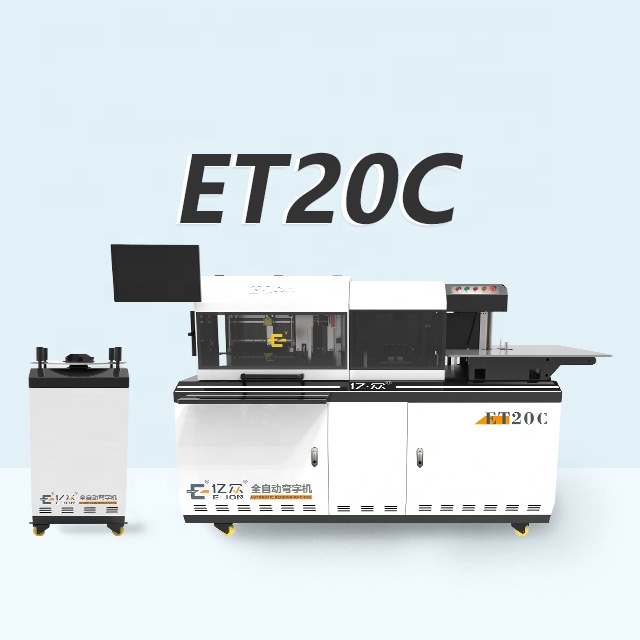

ET20C full-automatic notching and flanging bending machine adds the function of automatic notching and cutting for flat metal material on the basis of existing bending machine. The notching and cutting are controlled by servo system, which is high precision, fast speed. strong stability.
Plane cutter can slot all kinds of materials. The linear guideway is matched with the ball screw, with 750W high-power servo motor, greatly improve the feeding speed and stability.
Double bends alternate bending structure, adopts the bends
structure cast by ductile iron, which has good shock absorption and
high structural strength, reduces the number of parts and
components, equipped with high-power servo motor, which effectively
improves the positioning accuracy and the ability of high-speed
bending.
SPECIFICATIONS | ||||||
Feeding system | Double ball-screw alternate feeding system | |||||
Slotting System | Plane cutter | |||||
Bending System | Double blade alternate bending system | |||||
Suitable Material | Stainless steel, Galvanized steel, Aluminum plate, Aluminium
profile | |||||
Material Height | Stainless steel、Galvanized steel、Aluminum plate:10~200mm | |||||
Material Thickness | 0.4~1.0mm | |||||
Accuracy | ±0.1mm | |||||
Min. Bending Angle | R6 | |||||
File Format | Dxf. | |||||
Power | AC220V、50Hz、2.0Kw | |||||
Control System | 6 axis control system (24axis servo control) | |||||
1) The feeding struture adopts double ball screw matched with nylon gear transmission ensuring the precise positioning, smooth feeding, greatly improving the feeding speed and stability.
2) The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.
3) The slotting and bending adopt high-power servo motor which accurate positioning, fast response, stable operation, and effectively improve the system's rapidity and stability.
The casting on Clamping increases the grasping force, meanwhile
does not scratch the material
The double ball screw of feeding design ensure the feeding speed
and precision as well as stability
Double-cutter slotting, using plane cutter for Galvanized sheet and
Stainless steel,using milling cutter for Aluminum plate and
Aluminum profiles.
The encoder module is the key component of the the relation
equipment precision , and the precision casting is used to ensure
the performance of the high precision encoder.
To use the device, you need to install the control card in your
computer and then connect to the bending machine and install the
software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to
install the control card.
The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.
The software of bending machine is self-developed. Import file
format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format.
Then open the operating software, select the document.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
|
