    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine

    Ask Lasest Price
    Brand Name : Ejon
    Supply Ability : 5000 Set/Sets per Year
    Price : $12,100.00/sets 1-2 sets
    • Product Details
    • Company Profile

    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine

    Product Overview

    Ejon S13 3d channel sign machine outdoor stainless steel sign backlit led machine
    sign channel letter equipment
    бортогибочный станок для букв,ماكينة الانحناء للحروف,dobladora de letras de canal,dobladora de letras 3d
    Ejon S13 Multifunctional Automatic Channel Letter Bending Machine is widely used in advertising company for metal signs manufacturing, including seiko letters, resin letters, narrow edge letters, rimless letters, luminous letters, etc. and is very popular in Middle East, America and Russia, etc. The using of full servo motor ensures the accuracy and stability of feeding, slotting, heightening and bending. Small radian bender can be customized, the minimum angle can reach to R3. It is the first choice for high-end LED characters, aluminum profile letters, stainless steel letters, punched letters, resin letters and other sign letters.

    Main characteristic of hardware

    1. Double ball screw matched with nylon gear transmission.
    2. Slotting mechanism with air blowing and cooling function.
    3. Feeding support controlled by air cylinder.
    4. High strength alloy planer controlled by high power servo.
    5. Ductile cast iron double blades bending structure.
    6. Steel coupling plus specially treated bender.
    7. Extra long bending span(20 cm longer than before).

    Main characteristic of software

    1. Various processing methods can be switched at will for different materials and fonts. 2. The injection amount can be accurately calculated according to the injection process. 3. The software integrates material data of the plates to ensure the bending degree. 4. The software automatically optimizes nodes, without the need for customers to manually delete nodes. 5. One click to switch the use of different cutters for different materials.
    6. Plate data is automatically saved without multiple adjustments. 7. Continuous processing mode can be selected for batch processing, which is convenient and fast. 8. For angles smaller than R6, the thinning function can be selected to meet the requirements of various fonts. 9. Default sharp angle slotting function ensures the matching degree of slotting angle.
    FEATURES AT A GLANCE
    As a production equipment specializing in the processing of stainless steel seiko characters on the market, S13 can accurately fold out the edge, and realize the high-precision embedding of the letter face and the bottom plate, which greatly improves the appearance and three-dimensional sense of the luminous characters.
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Cast clamps can avoid scratching the material, meanwhile improving the feeding holding.
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    The encoder monitors the numerical change of the feeding length in real time, compensates the unqualified data, and ensures the feeding accuracy.
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Equipped with 4-axis high-power 750W full servo control system to ensure the accuracy and stability of feeding, slotting, heightening and bending.
    PRODUCT SPECIFICATIONS
    No
    Item
    Data
    1
    Power
    AC220V, 50Hz, 2.0 kW
    2
    Material thickness
    0.4~1.2 mm
    3
    Slotting trip
    Planer cutter: 10~130 mm; Milling cutter: 20~100 mm
    4
    Applicable material
    Metal sheet: stainless steel, galvanized plate, aluminum plate, iron
    Aluminum profile
    5
    Control system
    4 axis servo control system
    6
    Slotting method
    Plane cutter/Milling cutter
    7
    Package size
    1410 mm * 750 mm * 1560 mm;
    660 mm *660 mm * 1110 mm
    8
    File format
    Dxf.Plt.Ai
    9
    Machine weight
    500 kg

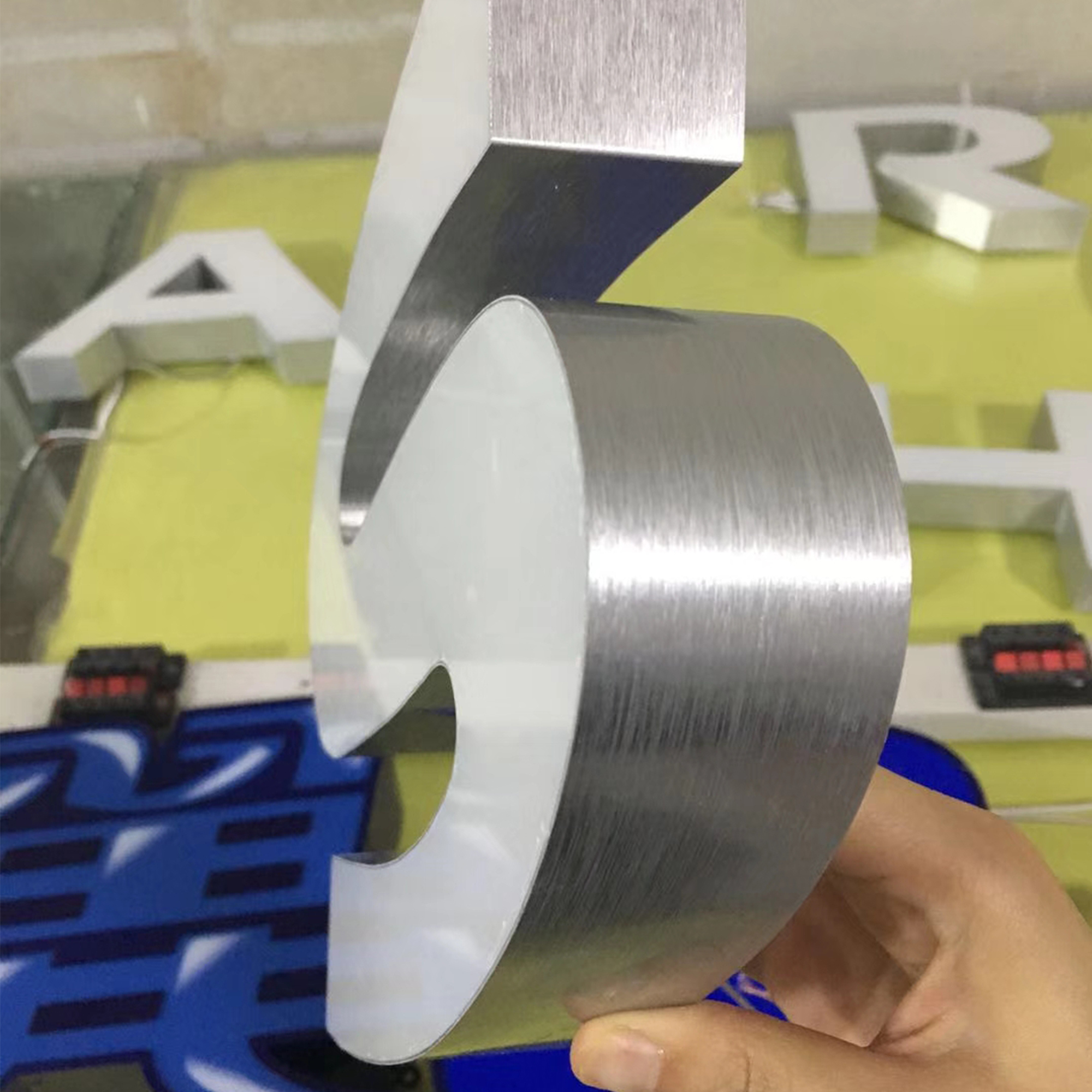

    Sample Letters Show
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Seiko letter
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Resin letters
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Narrow edge letters
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Rimless letter
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Luminous letters
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Luminous letters
    *** We also have the metal strips on sale, click here to tell us what you need***
    About Us
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    click here to learn more about our store
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    SALES AND SERVICE NETWORK
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine

    Pre-Sales Service

    * Inquiry and consulting support.
    * Sample testing support.
    * View our Factory.
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine

    After-Sales Service

    * Training how to install the machine
    * Training how to use the machine.
    * Engineers available to service machinery overseas.
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine

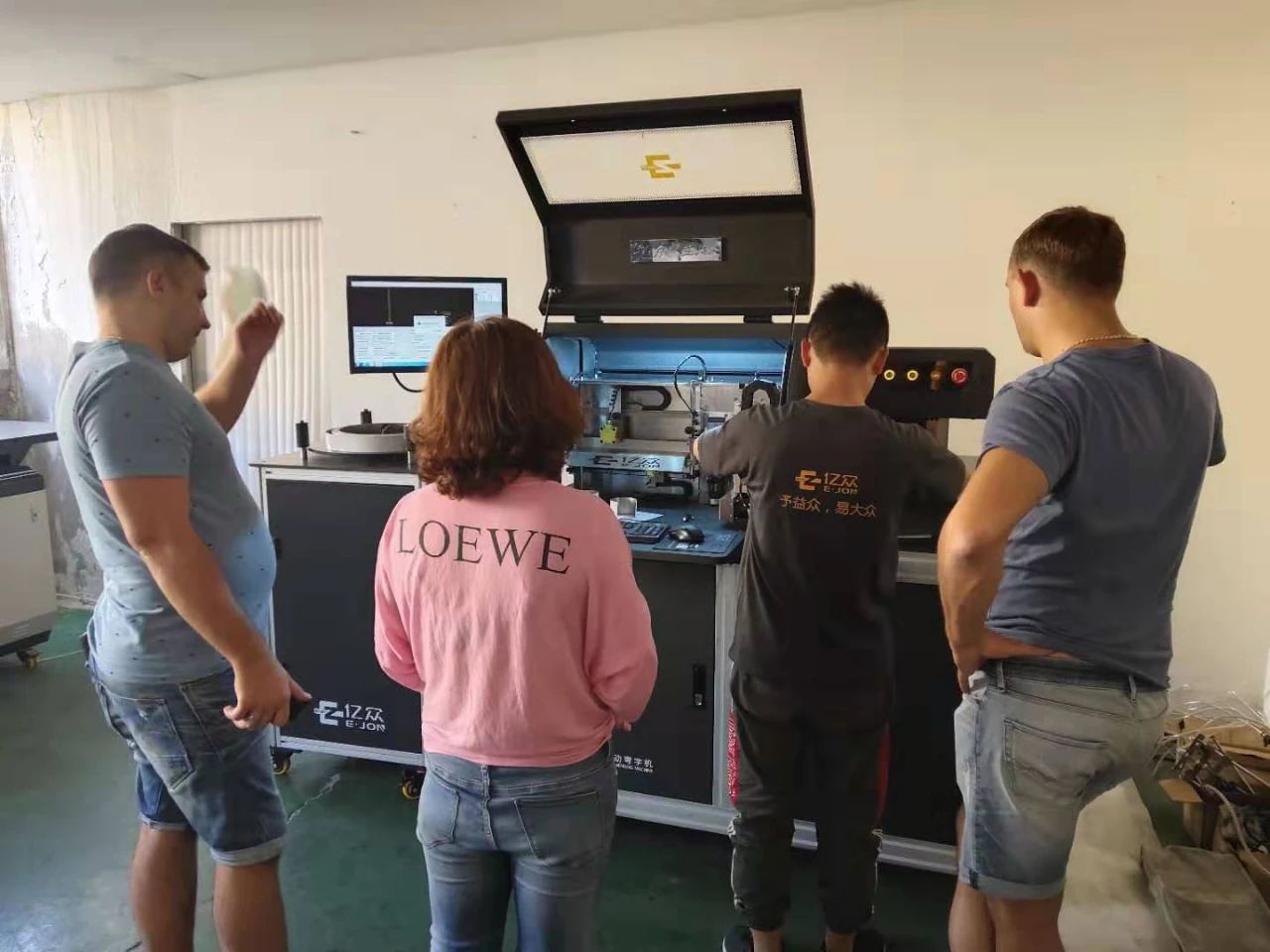

    Our Customers
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    India
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Spain
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    USA
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Chinese Taiwan
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Kenya
    Bent 3D Aluminum Letters With Ejon S13 CNC Channel Letter Bending Machine
    Ukraine
